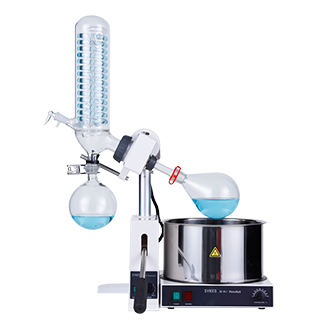

Manual Rotary Evaporator
0.5L 1L 2L Rotary Evaporator SK-98-1
An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test.
Consult now

Working Principle


An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.


Application


1. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.


2. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.


Features


1. Sealing rings adopt imported German technology polymer composite to guarantee high vacuum level.


2. Lifting operation is convenient with smooth, and it is convenient to lock it.


3. Equipped with the special motor, rotation speed is stable and smooth, and rotation speed is 10 ~ 120rpm.


4. German mechanical temperature control can guarantee precise control.


5. High efficient condensation can reach 1500c㎡ condensation area.


6. High recovery.
