Manual Rotary Evaporator

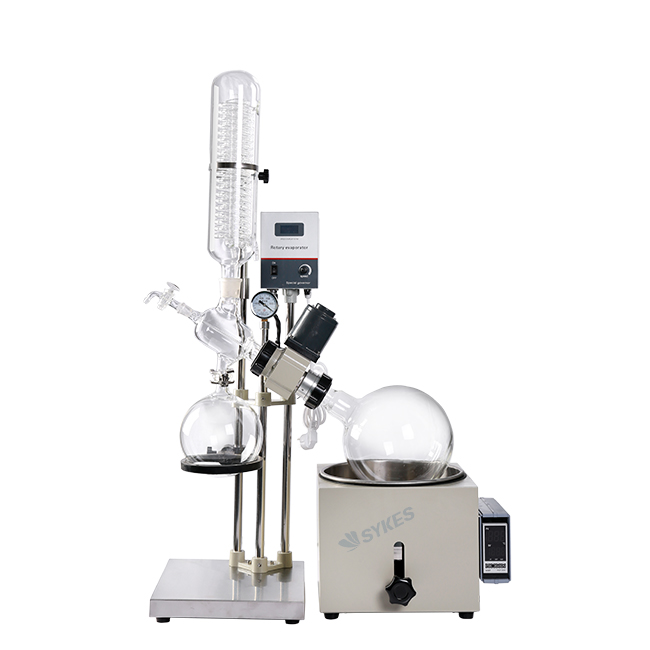

5L Manual Lifting Rotary Evaporator RE-501
An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test.
Consult now

Working Principle


An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.


Application


1.An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.


2. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.


Features

1. Reasonable structure with high quality material . High Borosilicate GG3.3 Glass ,Stainless Steel SUS304 and aluminum parts

2. PTFE and rubber compound seal can maintain high vacuum.

3. Double coil Condenser to ensure efficient chilling and recovery.

4. The rotating bottle is connected with nuts for easy handling.

5. A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.

6. Equipped with a vacuum gauge, the best working vacuum is available for different low boiling point materials.

7. Heating Water/Oil Bath with Intelligent Temperature control system

8. PTFE and Rubber seal wearing parts of all the new national standard, user-friendly replacement.

9. Speed controller is stepless ,stable and reliable.

10. Water bath electric lift and manual lift support, easy to use.

11. PTFE draining valve, corrosion resistance, pollution-free.
